天線型號

工作頻段

極化方式

增益

3dB寬度

駐波比

前后比

交叉極化

法蘭規格

方向圖包絡

Antenna Type

Operation Frequency(GHz)

Polarization

Gain(dBi)

3dB BW(°)

VSWR

F/B(dB)

XPD(dB)

Flange

ETSI RPE

Low

Mid

Top

WTG06-W71S

7.125-8.5

Single

29.6

31.1

32.2

4.7

1.3

57

30

153IEC-R84

Range1,Class3

WTG06-107S

10.7-11.7

Single

33.8

34.5

35.2

3.3

1.3

61

30

153IEC-R100

Range1,Class3

WTG06-127S

12.75-13.25

Single

35.8

36.0

36.2

2.7

1.3

62

30

153IEC-R120

Range1,Class3

WTG06-144S

14.4-15.35

Single

36.5

36.8

37.2

2.5

1.3

65

30

153IEC-R140

Range2,Class3

WTG06-177S

17.7-19.7

Single

38.4

38.9

39.1

2.1

1.3

67

30

153IEC-R220

Range2,Class3

WTG06-212S

21.2-23.6

Single

40.0

40.5

41.0

1.7

1.3

65

30

153IEC-R220

Range3,Class3

WTG06-242S

24.25-26.5

Single

41.1

41.6

42.1

1.5

1.3

68

30

153IEC-R220

Range4,Class3

WTG06-275S

27.5-29.5

Single

42.3

42.6

43.0

1.2

1.3

68

30

153IEC-R320

Range4,Class3

WTG06-318S

31.8-33.4

Single

43.2

43.5

43.8

1.0

1.3

61

30

153IEC-R320

Range5,Class3B

WTG06-370S

37.0-40.0

Single

44.6

45.2

45.8

0.9

1.3

64

30

153IEC-R320

Range5,Class3B

方位調節范圍 Coarse Azimuth, (degree)

360

方位微調范圍 Fine Azimuth Adjustment,(degree)

±15

俯仰調節范圍 Coarse Elevation,(degree)

±25

俯仰微調范圍 Fine Elevation Adjustment, (degree)

±15

抱桿直徑 Mounting Pie Diameter,(mm)

φ51~φ114

饋源氣密性 Feeder Watertightness

Watertight

工作風速 Wind velocity operational, (km/h)

110

生存風速 Wind velocity Survival Rating,(km/h)

250

工作溫度 Operational Temperature,(℃)

-45~+60

掛冰厚度 Ice-load,(mm)

25.4

加強桿 Strengthening rod

N/A

包裝尺寸 Packing dimension,(mm)

775×775×440

凈重 Net weight,(kg)

14.5±1

毛重 Gross weight,(kg)

22.0±2

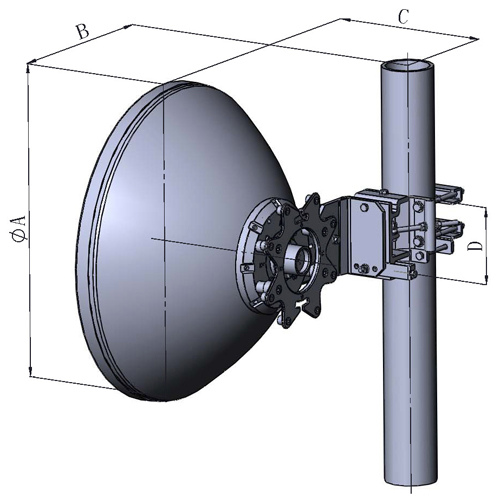

Antenna size.ft(mm)

A

B

C

D

Φ690

415

360

170

掛架表面處理 Surface Treatment of Mounting Kit

陽極氧化 GYB

抱桿直徑Pole Diameter

         φ51-φ114mm

凈重量Net Weight

            14.5kg

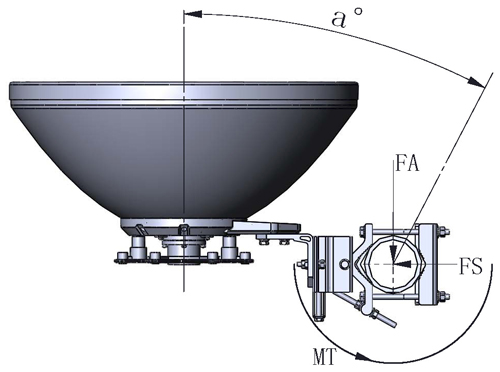

Axial Force(FA)

206(N)|46.3(lbf)

1124(N)|252(lbf)

Side Force(FS)

82(N)|18.4(lbf)

446(N)|100(lbf)

Twisting Moment(MT)

89(N·m)

484(N·m)
